Satellite Radio Antenna - Installation

INSTALLATION





1. Connect antenna cable to satellite receiver.





2. Install antenna cable retainers to D-pillar and roof panel.

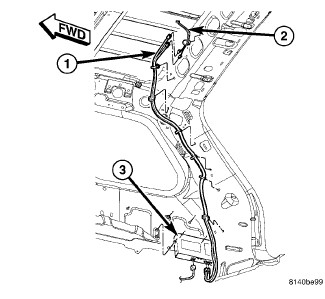

3. Connect antenna cable (1) to satellite antenna (2).
4. Install headliner Headliner - Installation.
5. Install D-pillar trim.
6. Connect battery negative cable.
