Seat Cushion - Front

Fig 1: Cushion Nuts
GC0027972Courtesy of CHRYSLER LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. See WARNING .
  2. Move the seat to the forward position and disconnect and isolate the negative battery cable.
  3. Remove the bolts (2) and the straps (1).
  4. Disconnect the electrical connector, if equipped.

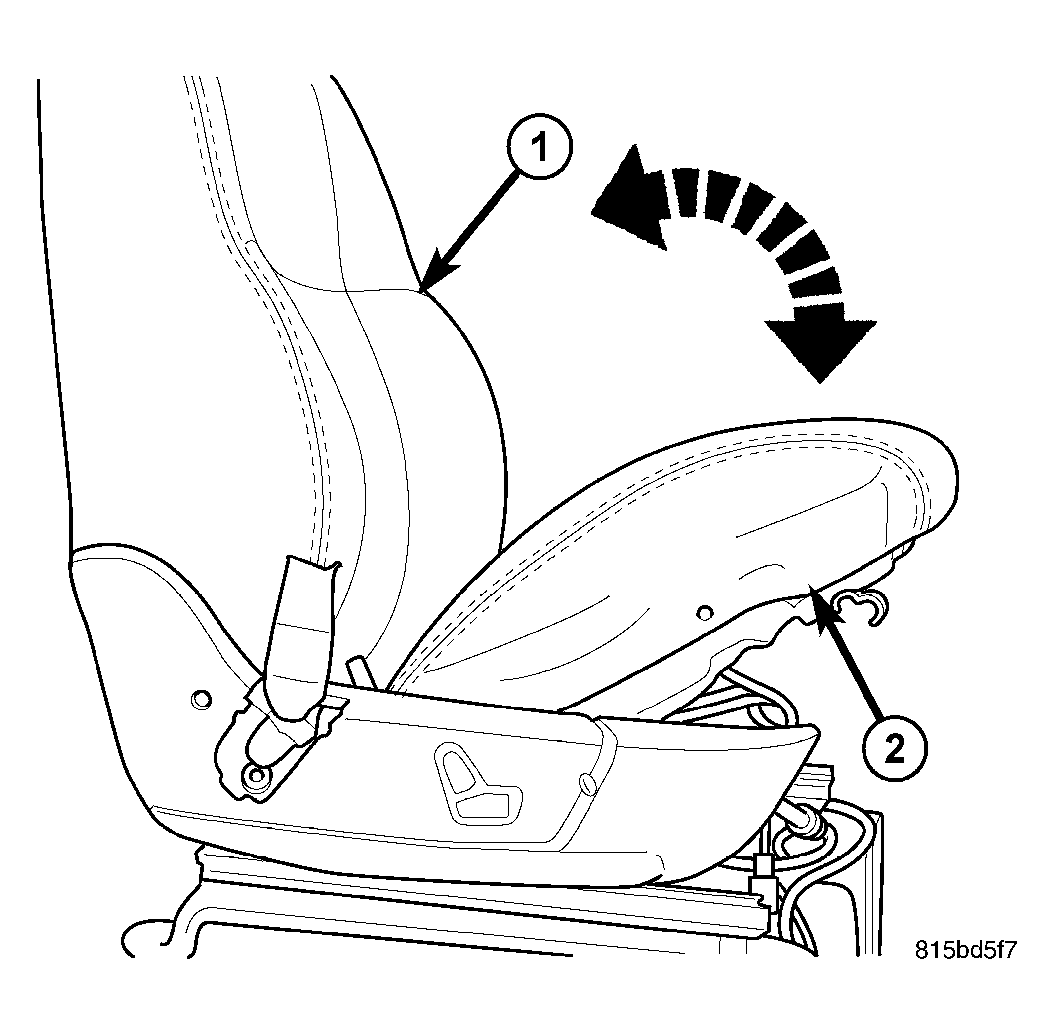

    Fig 2: Seat Cushion Removal
    GC0044993Courtesy of CHRYSLER LLC
  5. Lift the front of the seat cushion (2) up and slide out from under the seat back cushion (1).
