Instrument Panel Center Bezel

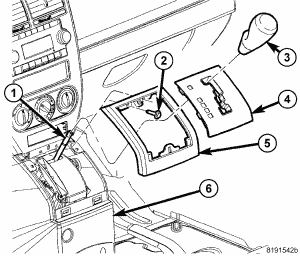

Fig 1: Auto Bezel

Courtesy of CHRYSLER LLC

Remove the shifter trim rings (4 and 5), see REMOVAL .

Fig 2: Instrument Panel Upper Trim
Courtesy of CHRYSLER LLC
Using a trim stick C-4755 or equivalent, remove the upper trim cover over the center bezel and radio.

Fig 3: Center Bezel
Courtesy of CHRYSLER LLC
Using a trim stick C-4755 or equivalent, separate the center bezel from the I/P.

Fig 4: Removing/Installing Control-A/C-Heater
Courtesy of CHRYSLER LLC
Disconnect the HVAC controller electrical connectors (3) and control cables (1 and 9)
