Seat - Front

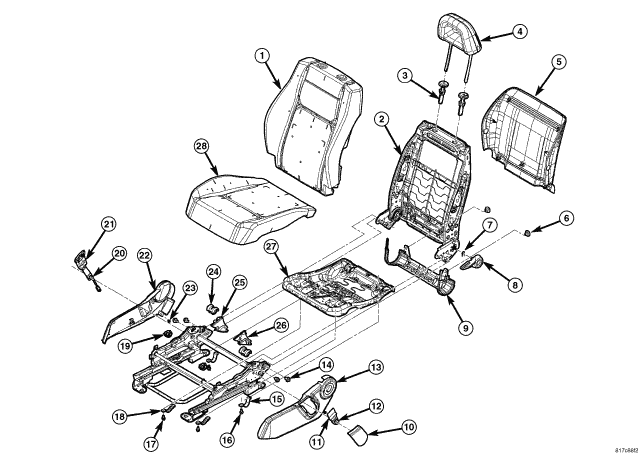

Fig 1: 2-Way Driver Seat
GC0055723Courtesy of CHRYSLER LLC
1 - SEAT BACK CUSHION/COVER 15 - SEAT CUSHION STRAPS - REAR (2)
2 - SEAT BACK FRAME 16 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N.m (8 ft. lbs.)
3 - HEADREST SLEEVES 17 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N.m (8 ft. lbs.)
4 - HEADREST 18 - SEAT CUSHION STRAPS - FRONT (2)
5 - SEAT BACK TRIM PANEL 19 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)
6 - PUSH PIN FASTENERS (2) 20 - SEAT BELT BUCKLE BOLT 45 N.m (33 ft. lbs.)
7 - RECLINER HANDLE RETAINER CLIP 21 - SEAT BELT BUCKLE
8 - RECLINER HANDLE 22 - INBOARD SIDE SHIELD - OUTER
9 - SUB PANEL BASE TRIM 23 - SIDE SHIELD SCREWS (one per side)
10 - SEAT BELT ANCHOR TRIM 24 - SEAT CUSHION STRAP BUSHINGS - REAR (2)
11 - SEAT BELT ANCHOR 25 - INBOARD SIDE SHIELD - INNER
12 - SEAT BELT ANCHOR BOLT 32 N.m (23.5 ft. lbs.) 26 - OUTBOARD SIDE SHIELD - INNER
13 - OUTBOARD SIDE SHIELD - OUTER 27 - SEAT CUSHION PAN
14 - BACK ASSEMBLY BOLTS (4) 40 N.m (30 ft. lbs.)
WARNING: Discard and replace the seat back bolts (14) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
 28 - SEAT CUSHION/COVER

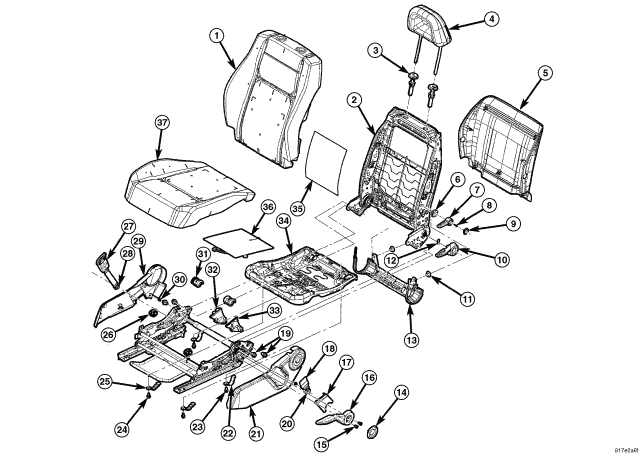

Fig 2: 4-Way Driver Seat
GC0055724Courtesy of CHRYSLER LLC
1 - SEAT BACK CUSHION/COVER 20 - SEAT BELT ANCHOR BOLT 32 N.m (23.5 ft. lbs.)
2 - SEAT BACK FRAME 21 - OUTBOARD SIDE SHIELD - OUTER
3 - HEADREST SLEEVES 22 - SEAT CUSHION STRAPS - REAR (2)
4 - HEADREST 23 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N.m (8 ft. lbs.)
5 - SEAT BACK TRIM PANEL 24 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N.m (8 ft. lbs.)
6 - LUMBAR HANDLE GROMMET 25 - SEAT CUSHION STRAPS - FRONT (2)
7 - LUMBAR HANDLE 26 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)
8 - LUMBAR HANDLE SCREW 27 - SEAT BELT BUCKLE
9 - LUMBAR HANDLE CAP 28 - SEAT BELT BUCKLE BOLT 45 N.m (33 ft. lbs.)
10 - RECLINER HANDLE 29 - INBOARD SIDE SHIELD - OUTER
11 - PUSH PIN FASTENERS (2) 30 - SIDE SHIELD SCREWS (one per side)
12 - RECLINER HANDLE RETAINER CLIP 31 - SEAT CUSHION STRAP BUSHINGS - REAR (2)
13 - SUB PANEL BASE TRIM 32 - INBOARD SIDE SHIELD - INNER
14 - LIFT HANDLE CAP 33 - OUTBOARD SIDE SHIELD - INNER
15 - LIFT HANDLE SCREWS (2) 34 - SEAT CUSHION PAN
16 - LIFT HANDLE 35 - HEATING ELEMENT - SEAT BACK
17 - SEAT BELT ANCHOR TRIM 36 - HEATING ELEMENT - SEAT CUSHION
18 - SEAT BELT ANCHOR 37 - SEAT CUSHION/COVER
19 - BACK ASSEMBLY BOLTS (4) 40 N.m (30 ft. lbs.)
WARNING: Discard and replace the seat back bolts (19) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
 -

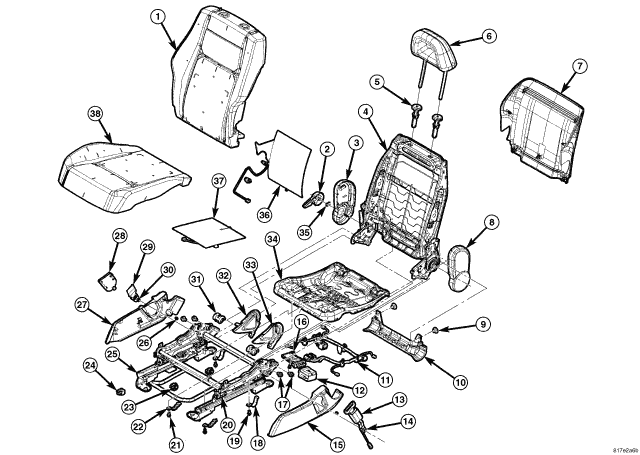

Fig 3: Passenger Fold Flat Seat
GC0055725Courtesy of CHRYSLER LLC
1 - SEAT BACK CUSHION/COVER 20 - OCS STRAIN GAUGE (4)
NOTE:
  1. Center OCS Strain Gauge stud nut 45 N.m (33 ft. lbs.)
  2. Outer rail bolts/nuts 28 N.m (21 ft. lbs.)
2 - RECLINER HANDLE 21 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N.m (8 ft. lbs.)
3 - OUTBOARD RECLINER SHIELD 22 - SEAT CUSHION STRAPS - FRONT (2)
4 - SEAT BACK FRAME 23 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)
5 - HEADREST SLEEVES 24 - TRACK POSITION SENSOR
6 - HEADREST 25 - SEAT ADJUSTER ASSEMBLY
7 - SEAT BACK TRIM PANEL 26 - SIDE SHIELD SCREWS (one per side)
8 - INBOARD RECLINER SHIELD 27 - OUTBOARD SIDE SHIELD - OUTER
9 - PUSH PIN FASTENERS (2) 28 - SEAT BELT ANCHOR TRIM
10 - SUB PANEL BASE TRIM 29 - SEAT BELT ANCHOR
11 - WIRE HARNESS 30 - SEAT BELT ANCHOR BOLT 32 N.m (23.5 ft. lbs.)
12 - HEATED SEAT MODULE 31 - SEAT CUSHION STRAP BUSHINGS - REAR (2)
13 - SEAT BELT BUCKLE 32 - OUTBOARD SIDE SHIELD - INNER
14 - SEAT BELT BUCKLE BOLT 45 N.m (33 ft. lbs.) 33 - INBOARD SIDE SHIELD - INNER
15 - INBOARD SIDE SHIELD - OUTER 34 - SEAT CUSHION PAN
16 - OCS MODULE 35 - RECLINER HANDLE RETAINER CLIP
17 - BACK ASSEMBLY BOLTS (4) 40 N.m (30 ft. lbs.)
WARNING: Discard and replace the seat back bolts (17) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
 36 - HEATING ELEMENT - SEAT BACK
18 - SEAT CUSHION STRAPS - REAR (2) 37 - HEATING ELEMENT - SEAT CUSHION
19 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N.m (8 ft. lbs.) 38 - SEAT CUSHION/COVER

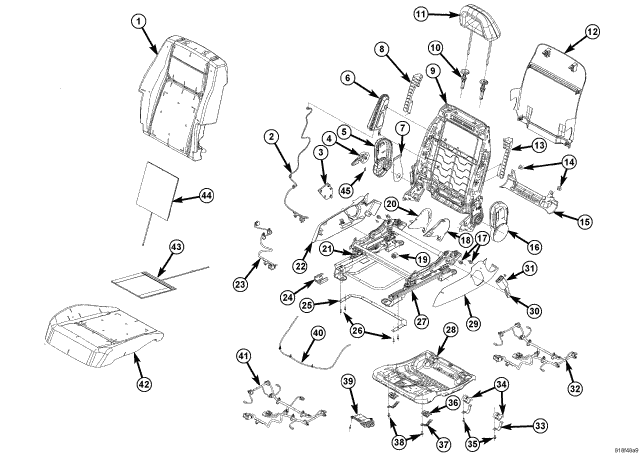

Fig 4: Passenger Fold Flat W/Air Bag
GC0055726Courtesy of CHRYSLER LLC
1 - SEAT BACK CUSHION/COVER 24 - TRACK RAIL COVER (2)
2 - SEAT AIR BAG WIRE HARNESS 25 - CROSS BRACE TRACK BRACKET
3 - SEAT BELT ANCHOR TRIM 26 - CROSS BRACE TRACK BRACKET SCREWS (4)
4 - RECLINER HANDLE 27 - SEAT ADJUSTER ASSEMBLY
5 - OUTBOARD RECLINER SHIELD 28 - SEAT CUSHION PAN
6 - SEAT AIR BAG 10 N.m (90 in. lbs.) 29 - OUTBOARD SIDE SHIELD - OUTER
7 - WIRE ROUTING SHIELD 30 - SEAT BELT BUCKLE BOLT 45 N.m (33 ft. lbs.)
8 - SEAT AIR BAG BEZEL 31 - SEAT BELT BUCKLE
9 - SEAT BACK FRAME 32 - WIRE HARNESS
10 - HEADREST SLEEVES 33 - SEAT CUSHION STRAPS - REAR (2)
11 - HEADREST 34 - SEAT CUSHION STRAP BUSHINGS - REAR (2)
12 - SEAT BACK TRIM PANEL 35 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N.m (8 ft. lbs.)
13 - SEAT AIR BAG BEZEL 36 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)
14 - PUSH PIN FASTENERS (2) 37 - SEAT CUSHION STRAPS - FRONT (2)
15 - SUB PANEL BASE TRIM 38 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N.m (8 ft. lbs.)
16 - INBOARD RECLINER SHIELD 39 - OCS MODULE
17 - BACK ASSEMBLY BOLTS (4) 40 N.m (30 ft. lbs.)
WARNING: Discard and replace the seat back bolts (17) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
 40 - RECLINER CABLE
18 - INBOARD SIDE SHIELD - INNER 41 - WIRE HARNESS
19 - TRACK POSITION SENSOR 42 - SEAT CUSHION/COVER
20 - OUTBOARD SIDE SHIELD - INNER 43 - SEAT CUSHION HEAT ELEMENT
21 - OCS STRAIN GAUGE (4)
NOTE:
  1. Center OCS Strain Gauge stud nut 45 N.m (33 ft. lbs.)
  2. Outer rail bolts/nuts 28 N.m (21 ft. lbs.)
 44 - SEAT BACK HEAT ELEMENT
22 - OUTBOARD SIDE SHIELD - OUTER 45 - RECLINER HANDLE RETAINER CLIP
23 - WIRE HARNESS -

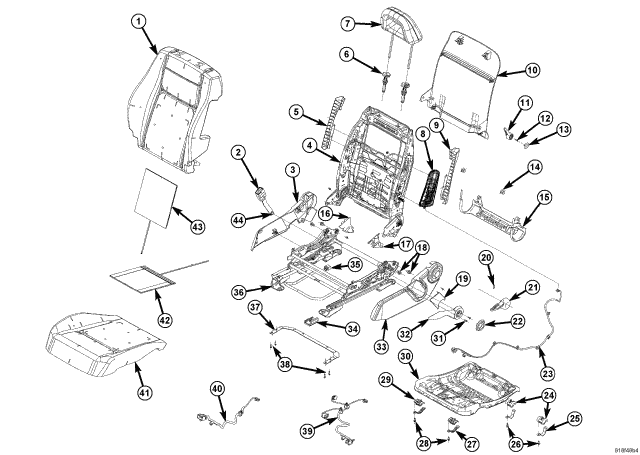

Fig 5: 4-Way Driver W/Air Bag
GC0055727Courtesy of CHRYSLER LLC
1 - SEAT BACK CUSHION/COVER 23 - SEAT AIR BAG HARNESS
2 - SEAT BELT BUCKLE 24 - SEAT CUSHION STRAP BUSHINGS - REAR (2)
3 - INBOARD SIDE SHIELD - OUTER 25 - SEAT CUSHION STRAPS - REAR (2)
4 - SEAT BACK FRAME 26 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N.m (8 ft. lbs.)
5 - SEAT AIR BAG BEZEL 27 - SEAT CUSHION STRAPS - FRONT (2)
6 - HEADREST SLEEVES 28 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N.m (8 ft. lbs.)
7 - HEADREST 29 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)
8 - SEAT AIR BAG 10 N.m (90 in. lbs.) 30 - SEAT CUSHION PAN
9 - SIDE IMPACT AIR BAG (SIAB) BEZEL 31 - LIFT HANDLE SCREWS (2)
10 - SEAT BACK TRIM PANEL 32 - LIFT HANDLE
11 - LUMBAR HANDLE 33 - OUTBOARD SIDE SHIELD - OUTER
12 - LUMBAR HANDLE SCREW 34 - TRACK RAIL COVER (2)
13 - LUMBAR HANDLE CAP 35 - TRACK POSITION SENSOR
14 - PUSH PIN FASTENERS (2) 36 - SEAT ADJUSTER ASSEMBLY
15 - SUB PANEL BASE TRIM 37 - CROSS BRACE TRACK BRACKET
16 - INBOARD SIDE SHIELD - INNER 38 - CROSS BRACE TRACK BRACKET SCREWS (4)
17 - OUTBOARD SIDE SHIELD - INNER 39 - WIRE HARNESS
18 - BACK ASSEMBLY BOLTS (4) 40 N.m (30 ft. lbs.)
WARNING: Discard and replace the seat back bolts (18) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
 40 - WIRE HARNESS
19 - SEAT BELT ANCHOR TRIM 41 - SEAT CUSHION/COVER
20 - RECLINER HANDLE RETAINER CLIP 42 - SEAT CUSHION HEAT ELEMENT
21 - RECLINER HANDLE 43 - SEAT BACK HEAT ELEMENT
22 - LIFT HANDLE CAP 44 - SEAT BELT BUCKLE BOLT 45 N.m (33 ft. lbs.)
