Exhaust Temperature Sensor-Removal

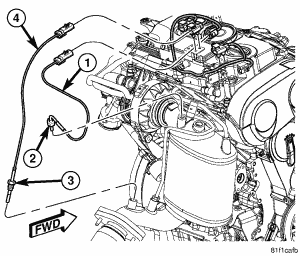

Fig 1: EXHAUST TEMPERATURE SENSOR - DPF

GC0055377

Courtesy of CHRYSLER LLC

1 - Upstream DPF Temperature Sensor Electrical Connector

2 - Upstream DPF Temperature Sensor

3 - Downstream DPF Temperature Sensor

4 - Upstream DPF Temperature Sensor Electrical Connector

Remove engine cover.
Disconnect and isolate negative batter cable.
Disconnect upstream DPF temperature sensor electrical connector.
Remove upstream DPF temperature sensor.
Disconnect downstream DPF temperature sensor electrical connector.
Remove downstream DPF temperature sensor.
