Timing Belt TENSIONER Assembly

WARNING: This page is about a different variant/trim than selected.

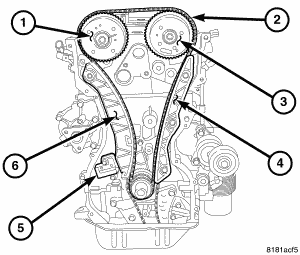

Fig 1: Timing Drive
GC0054833Courtesy of CHRYSLER LLC
  1. Remove timing chain. See REMOVAL .
    NOTE: Tensioner will not come apart during removal.
  2. Remove timing chain tensioner retaining bolts and remove tensioner.
