Crankshaft Sprocket

WARNING: This page is about a different variant/trim than selected.

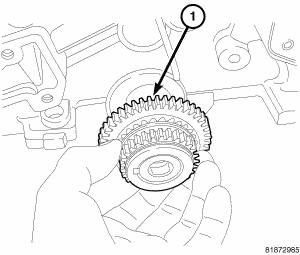

Fig 1: Crankshaft Sprocket
GC0054816Courtesy of CHRYSLER LLC
  1. Remove timing chain. See REMOVAL .
  2. Remove oil pan. See REMOVAL .
  3. Remove oil pump drive chain tensioner.
  4. Remove oil pump drive chain.
  5. Remove crankshaft sprocket (1).
