Crankshaft Sprocket

WARNING: This page is about a different variant/trim than selected.

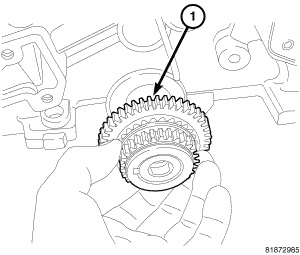

Fig 1: Crankshaft Sprocket
GC0054829Courtesy of CHRYSLER LLC
  1. Install crankshaft sprocket (1) onto crankshaft.

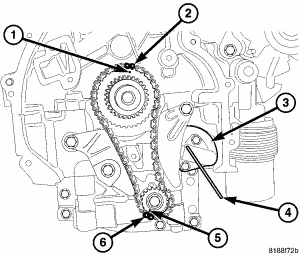

    Fig 2: Oil Pump Drive Chain
    GC0054830Courtesy of CHRYSLER LLC
  2. Install oil pump drive chain. Verify that Oil pump is correctly timed (1,2,5,6).

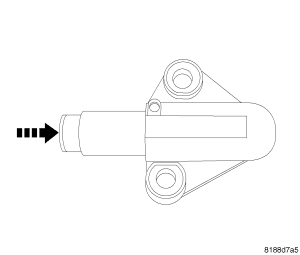

    Fig 3: Reset Oil Pump Drive Chain Tensioner
    GC0054831Courtesy of CHRYSLER LLC
  3. Reset oil pump drive chain tensioner by pushing plunger inward and install tensioner pin 8514.
    Fig 4: Oil Pump Drive Chain
    GC0054830Courtesy of CHRYSLER LLC
  4. Install oil pump drive chain tensioner (3) and remove Tensioner Pin 8514 (4).
  5. Install timing chain. See INSTALLATION .
  6. Install oil pan. See INSTALLATION .
  7. Fill engine with oil. See STANDARD PROCEDURE .
  8. Start engine and check for leaks.
