Camshaft Sprocket(S)

WARNING: This page is about a different variant/trim than selected.

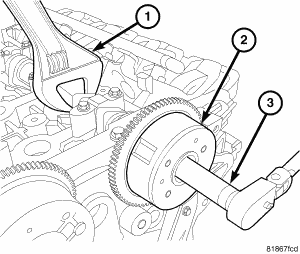

Fig 1: CAMSHAFT PHASER
GC0054832Courtesy of CHRYSLER LLC
NOTE: The camshaft sprockets and the camshaft phasers are an assembly and cannot be serviced separately.
CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.
  1. Refer to Camshaft phaser (2) installation. See INSTALLATION
