2.0L Engine

WARNING: This page is about a different variant/trim than selected.

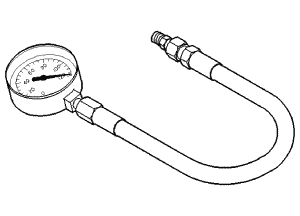

Fig 1: Oil Pressure Gage C-3292

Courtesy of CHRYSLER LLC

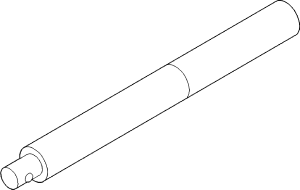

Fig 2: Driver Handle C-4171

Courtesy of CHRYSLER LLC

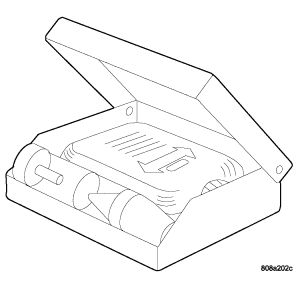

Fig 3: BLOC-CHECK-KIT C-3685-A

Courtesy of CHRYSLER LLC

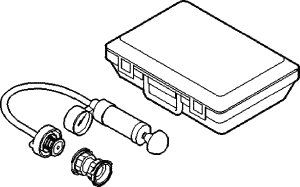

Fig 4: Cooling System Tester 7700

Courtesy of CHRYSLER LLC

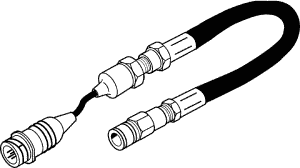

Fig 5: Pressure Transducer CH7059

Courtesy of CHRYSLER LLC

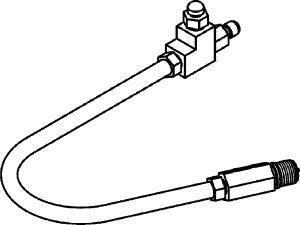

Fig 6: Adapter 8116

Courtesy of CHRYSLER LLC

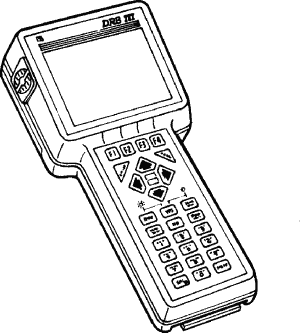

Fig 7: DRB III(R)

Courtesy of CHRYSLER LLC

Fig 8: Front Seal Installer 9506

Courtesy of CHRYSLER LLC

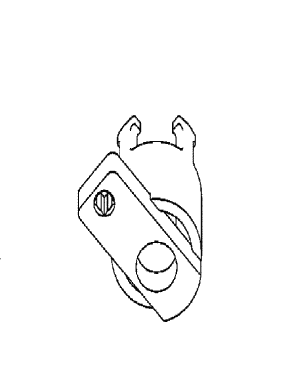

Fig 9: Holding Fixture 9707

Courtesy of CHRYSLER LLC

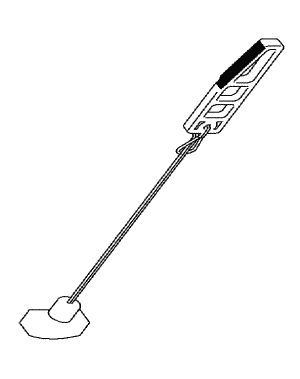

Fig 10: Locking Wedge 9701

Courtesy of CHRYSLER LLC

Fig 11: Rear Crankshaft Seal Guide 9509

Courtesy of CHRYSLER LLC

Fig 12: Rear Main Seal Driver 9706

Courtesy of CHRYSLER LLC

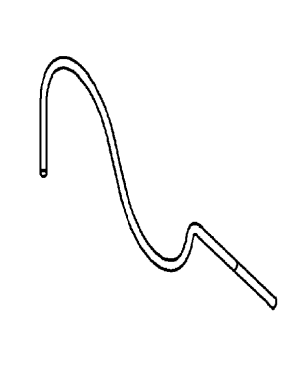

Fig 13: Tensioner Pin 9703

Courtesy of CHRYSLER LLC
