Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

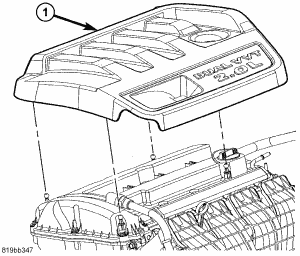

Fig 1: Engine Cover
GC0054766Courtesy of CHRYSLER LLC
  1. Remove engine cover (1).
  2. Disconnect negative cable from battery.

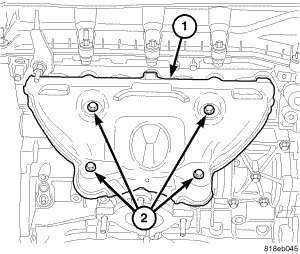

    Fig 2: Upper Heat Shield Bolts
    GC0054767Courtesy of CHRYSLER LLC
  3. Remove bolts attaching upper heat shield.
  4. Remove upper heat shield (1).
  5. Disconnect exhaust pipe from manifold.

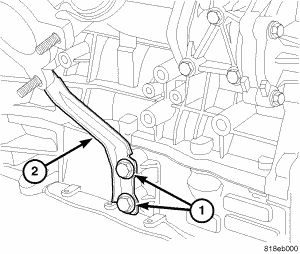

    Fig 3: Manifold Support Bracket
    GC0054768Courtesy of CHRYSLER LLC
  6. Remove manifold support bracket (2).

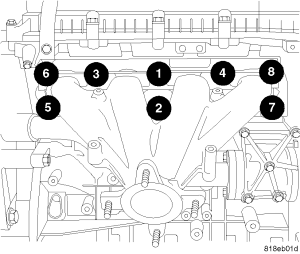

    Fig 4: Manifold Bolt Torque Sequence
    GC0054769Courtesy of CHRYSLER LLC
  7. Disconnect oxygen sensor electrical connector.
  8. Remove exhaust manifold retaining fasteners.
  9. Remove and discard manifold gasket.
