Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

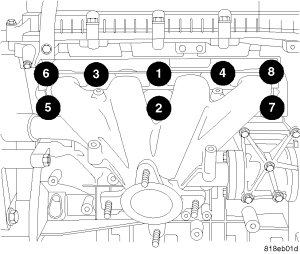

Fig 1: Torque Sequence
GC0054770Courtesy of CHRYSLER LLC
  1. Install a new exhaust manifold gasket. DO NOT APPLY SEALER  .
  2. Tighten the exhaust manifold bolts to 34 N.m (25 ft. lbs.).

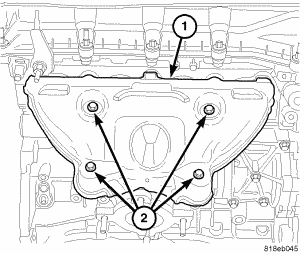

    Fig 2: Upper Heat Shield Bolts
    GC0054771Courtesy of CHRYSLER LLC
  3. Install exhaust manifold heat shields. Tighten bolts to 12 N.m (105 in. lbs.).

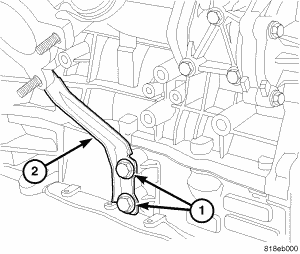

    Fig 3: Exhaust Manifold Support Bracket
    GC0054772Courtesy of CHRYSLER LLC
  4. Install exhaust manifold support bracket (2).

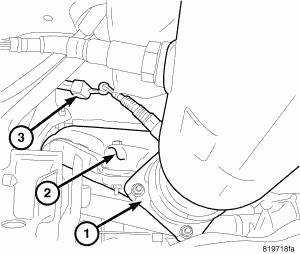

    Fig 4: Oxygen Sensor Electrical Connector
    GC0054773Courtesy of CHRYSLER LLC
  5. Install new catalytic converter gasket.
  6. Install exhaust pipe to manifold (1). Tighten fasteners to 28 N.m (250 in. lbs.).
  7. Connect oxygen sensor electrical connector (3).

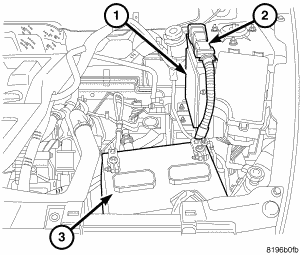

    Fig 5: Battery, Negative Battery Cable & PCM
    GC0054774Courtesy of CHRYSLER LLC
  8. Connect negative cable to battery (3).
  9. Install engine cover.
