Oil Pump

WARNING: This page is about a different variant/trim than selected.

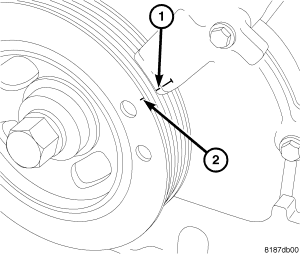

Fig 1: TDC

Courtesy of CHRYSLER LLC

Rotate engine to TDC (1,2) on #1 compression stroke.

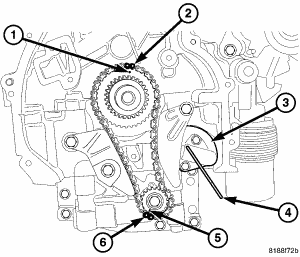

Fig 2: Timing Chain Mark & Tensioner Pin
Courtesy of CHRYSLER LLC
Remove oil pan. See REMOVAL .
Mark the chain (6) and the sprocket (5) for reassembly.

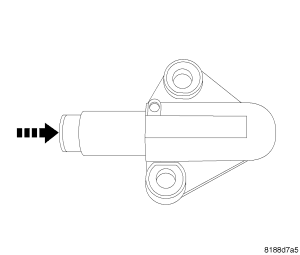

Fig 3: Tensioner Piston
Courtesy of CHRYSLER LLC
Push tensioner piston back into the tensioner body.

Fig 4: Timing Chain Mark & Tensioner Pin
Courtesy of CHRYSLER LLC
With piston held back insert tensioner pin 9703 (4) into the tensioner body to hold the piston in the retracted position.
NOTE: Do not remove sprocket from BSM.
Remove BSM mounting bolts and discard.
Lower the back of the BSM and remove the chain (6) from the sprocket (5).
Remove BSM from the engine.
