Oil Pump

WARNING: This page is about a different variant/trim than selected.

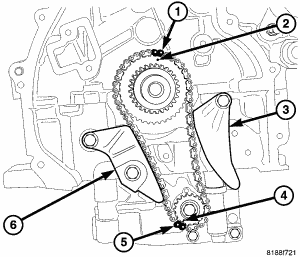

Fig 1: Aligning Marks On Sprockets & Chain
GC0054755Courtesy of CHRYSLER LLC
CAUTION: Do not reuse Balance Shaft Module (BSM) to engine block bolts. Always discard bolts after removing. Failure to replace bolts can result in engine damage.
  1. Clean BSM mounting holes Mopar® brake parts cleaner.
  2. If the chain was removed, align marks on crankshaft sprocket (2) and chain (1).
  3. Align marks on oil pump sprocket (5) and chain (4).
  4. Install chain on sprocket.
  5. Pivot BSM assembly upwards and position on ladder frame.

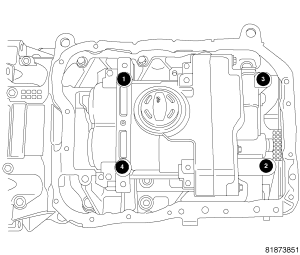

    Fig 2: Torque Sequence
    GC0054756Courtesy of CHRYSLER LLC
  6. Start new  BSM mounting bolts by hand.
    NOTE: Use a three step procedure when torquing BSM mounting bolts.
  7. Tighten BSM mounting bolts to 15 N.m (11 ft. lbs.) as shown in illustration.
  8. Tighten BSM mounting bolts to 29 N.m (22 ft. lbs.) as shown in illustration.
  9. Rotate bolts an additional 90° as shown in illustration.

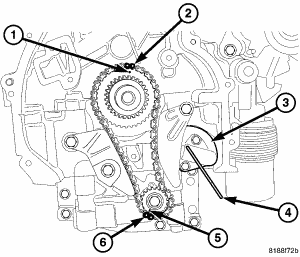

    Fig 3: Timing Chain Mark & Tensioner Pin
    GC0054757Courtesy of CHRYSLER LLC
  10. Remove tensioner pin 9703 (4).
  11. Install oil pan. See INSTALLATION .
  12. Fill with oil.
  13. Start engine and check for leaks.
