Oil Pan

WARNING: This page is about a different variant/trim than selected.

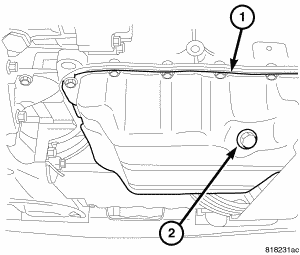

Fig 1: Oil Drain Plug

Courtesy of CHRYSLER LLC

Raise vehicle on hoist.
Remove oil drain plug (2) and drain the engine oil.
Remove accessory drive belt splash shield.

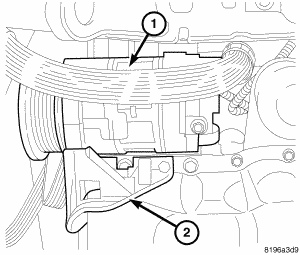

Fig 2: A/C Mounting Bracket
Courtesy of CHRYSLER LLC
Remove lower A/C compressor mounting bolt (if equipped).
Remove A/C mounting bracket (2).

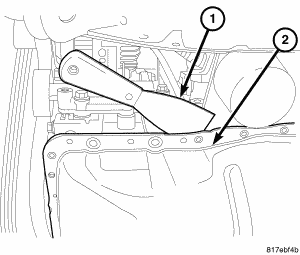

Fig 3: Oil Pan Removal
Courtesy of CHRYSLER LLC

NOTE: Do not use pry points in block to remove oil pan.
Remove oil pan retaining bolts.
Using a putty knife (1), loosen seal around oil pan (2).
Remove oil pan (2).
