Oil Pan

WARNING: This page is about a different variant/trim than selected.

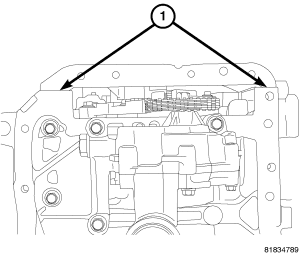

Fig 1: Engine Block Parting Lines

Courtesy of CHRYSLER LLC

NOTE: Oil pan sealing surfaces must be free of grease or oil.

NOTE: Parts must be assembled within 10 minutes of applying RTV.

Apply Mopar® Engine RTV GEN II at the front cover to engine block parting lines (1).

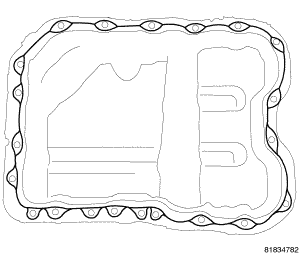

Fig 2: Sealant Bead
Courtesy of CHRYSLER LLC
Apply a 2 mm bead of Mopar® Engine RTV GEN II around the oil pan as shown in illustration.
Position oil pan and install bolts. Tighten bolts to 12 N.m (105 in. lbs.).
NOTE: The 2 long bolts must be tightened to 22 N.m (195 in. lbs.).

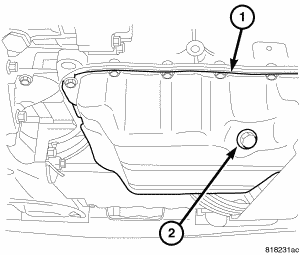

Fig 3: Oil Drain Plug
Courtesy of CHRYSLER LLC
Install oil drain plug (2).
Lower vehicle and fill engine crankcase with proper oil to correct level.
Start engine and check for leaks.
