Oil Control Valve Removal

WARNING: This page is about a different variant/trim than selected.

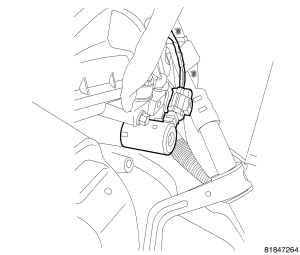

Fig 1: Solenoid Location 1/2
GC0054740Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Disconnect variable valve timing solenoid electrical connector.
  4. Remove variable valve timing solenoid mounting bolt.

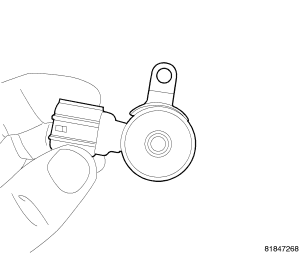

    Fig 2: Solenoid Mounting Tab 1/2
    GC0054741Courtesy of CHRYSLER LLC
  5. Pull solenoid straight out of cylinder head.

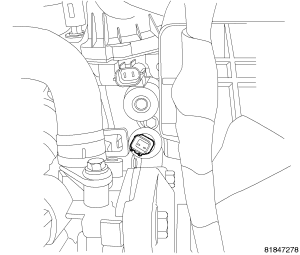

Fig 1: Oil Pressure Sensor
GC0054737Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Rotate hose clamp out of way.
  4. Disconnect oil pressure sensor electrical connector.
  5. Remove oil pressure sensor.
  6. Disconnect variable valve timing solenoid electrical connector.

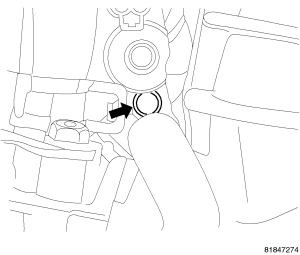

    Fig 2: Solenoid Mounting Bolt
    GC0054738Courtesy of CHRYSLER LLC
  7. Remove variable valve timing solenoid mounting bolt.

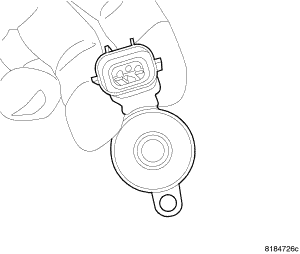

    Fig 3: Solenoid Mounting Tab 1/1
    GC0054739Courtesy of CHRYSLER LLC
  8. Pull solenoid straight out of cylinder head.
