Oil Control Valve Removal

WARNING: This page is about a different variant/trim than selected.

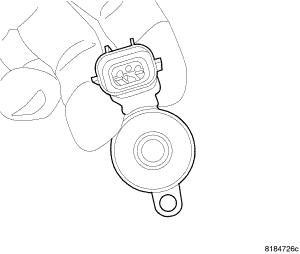

Fig 1: Solenoid Mounting Tab 1/1
GC0054742Courtesy of CHRYSLER LLC
  1. Solenoid for front location 1/1. Note mounting tab location is different between front and rear solenoids.

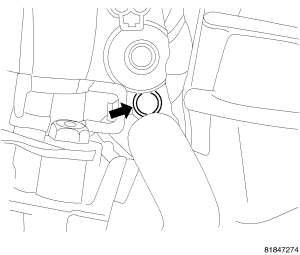

    Fig 2: Solenoid Mounting Bolt
    GC0054743Courtesy of CHRYSLER LLC
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).

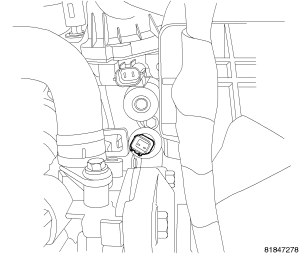

    Fig 3: Oil Pressure Sensor
    GC0054744Courtesy of CHRYSLER LLC
  4. Install oil pressure sensor.
  5. Connect electrical connector to oil pressure sensor.
  6. Connect electrical connector to Variable valve timing solenoid.
  7. Connect negative battery cable.
  8. Install engine cover.

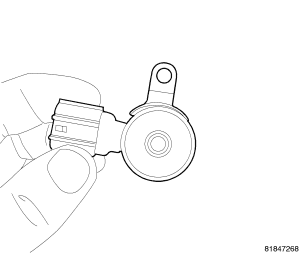

Fig 1: Solenoid Mounting Tab 1/2
GC0054745Courtesy of CHRYSLER LLC
  1. Rear variable valve timing solenoid. Note mounting tab location is different between front and rear solenoids.
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).
  4. Connect electrical connector to Variable valve timing solenoid.

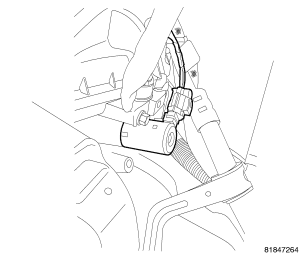

    Fig 2: Solenoid Location 1/2
    GC0054746Courtesy of CHRYSLER LLC
  5. Connect negative battery cable.
  6. Install engine cover.
