Oil Cooler & Lines
WARNING: This page is about a different variant/trim than selected.

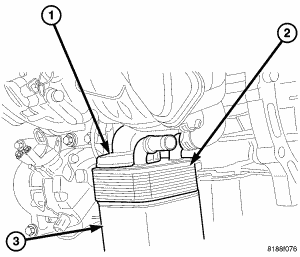

- Replace oil cooler seal (1).
- Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
- Install oil cooler connector bolt (2). Tighten connector bolt to 49 N.m (36 ft. lbs.).
- Install oil filter (3).
- Connect oil cooler coolant hose.
- Lower vehicle.
- Fill cooling system. Refer to STANDARD PROCEDURE .
