Engine Mount - Left

WARNING: This page is about a different variant/trim than selected.

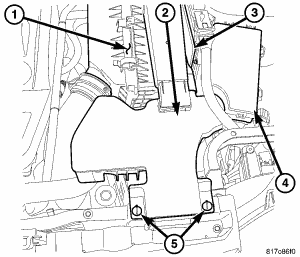

Fig 1: Air Cleaner Housing Assembly
GC0054700Courtesy of CHRYSLER LLC
  1. Remove air cleaner inlet (2) and air cleaner housing (1).

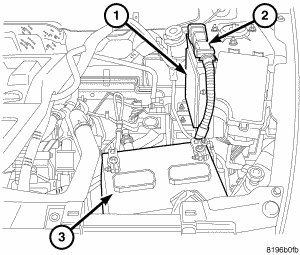

    Fig 2: Battery, Negative Battery Cable & PCM
    GC0054701Courtesy of CHRYSLER LLC
  2. Remove PCM (1).
  3. Remove PCM mounting bracket.
  4. Disconnect negative cable from battery (3).
  5. Support transaxle with a suitable jack.

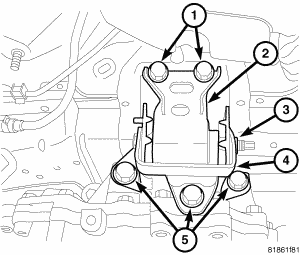

    Fig 3: Left Mount
    GC0054702Courtesy of CHRYSLER LLC
  6. Remove left mount through bolt (3).
  7. Remove left mount bracket to body frame rail fasteners (1).
  8. Remove mount.
