Crankshaft Oil Seal - Rear

WARNING: This page is about a different variant/trim than selected.

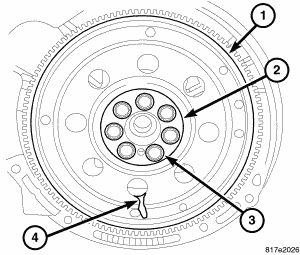

Fig 1: Flex Plate
GC0054673Courtesy of CHRYSLER LLC
  1. Remove transaxle
  2. Remove flex plate bolts and discard.
  3. Remove flex plate (1).

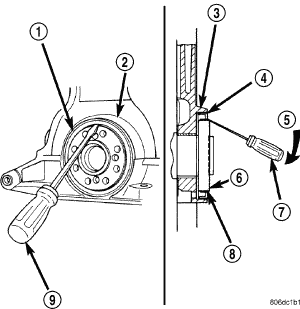

    Fig 2: Rear Crankshaft Oil Seal
    GC0054674Courtesy of CHRYSLER LLC
  4. Insert a 3/16 flat bladed screwdriver (7) between the dust lip (8) and the metal case (4) of the crankshaft seal (1). Angle the screwdriver through the dust lip against metal case of the seal. Pry out seal.
    CAUTION: Do not permit the screwdriver blade to contact crankshaft seal surface. Contact of the screwdriver blade against crankshaft edge (chamfer) is permitted.
  5. Check to make sure the seal's garter spring is not on the crankshaft.
