Crankshaft Oil Seal - Rear

WARNING: This page is about a different variant/trim than selected.

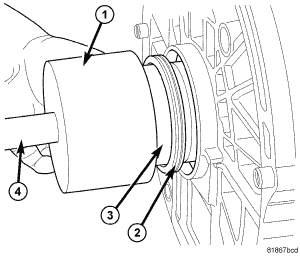

Fig 1: Rear Main Installation
GC0054675Courtesy of CHRYSLER LLC
CAUTION: If a burr or scratch is present on the crankshaft edge (chamfer), cleanup with 800 grit emery cloth to prevent seal damage during installation of new seal. If emery cloth is used, the crankshaft must  be cleaned off Mopar® brake parts cleaner.
NOTE: When installing seal, lubricate Seal Guide 9509 with clean engine oil.
  1. Place Rear Crankshaft Seal Guide 9509 (3) on crankshaft.
  2. Position seal (2) over Rear Crankshaft Seal Guide 9509 (3). Guide tool should remain on crankshaft during installation of seal. Ensure that the lip of the seal is facing towards the crankcase during installation.
  3. Drive the seal into the block using Seal Driver 9706 (1) and Driver Handle C-4171 (4) until Seal Driver 9706 bottoms out against the block.

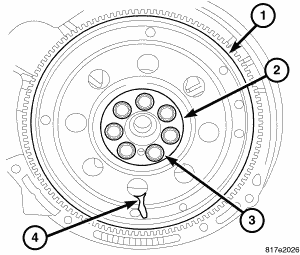

    Fig 2: Flex Plate
    GC0054676Courtesy of CHRYSLER LLC
  4. Install flex plate (1).
  5. Install washer (2).
  6. Install new  flex plate bolts (3) and tighten to 95 N.m (70 ft. lbs.).
  7. Install transaxle. Refer to appropriate Automatic Transmission SERVICE INFORMATION article for procedure.
