Crankshaft Oil Seal - Front

WARNING: This page is about a different variant/trim than selected.

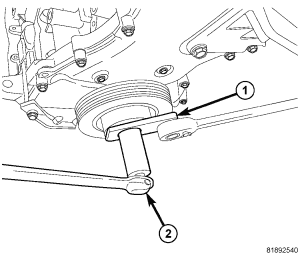

Fig 1: Removing/Installing Damper
GC0054667Courtesy of CHRYSLER LLC
  1. Remove accessory drive belt.
  2. Install Damper Holder 9707 (1) and remove damper retaining bolt.
  3. Pull damper off crankshaft.

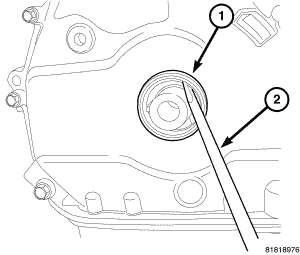

    Fig 2: Front Crankshaft Seal Removal
    GC0054668Courtesy of CHRYSLER LLC
  4. Remove front crankshaft oil seal (1) by prying out with a screw driver (2). Be careful not to damage the cover seal surface.
