Crankshaft Oil Seal - Front

WARNING: This page is about a different variant/trim than selected.

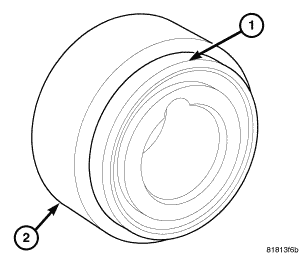

Fig 1: Front Crankshaft Seal Installer
GC0054669Courtesy of CHRYSLER LLC
  1. Place seal (1) onto Front Crankshaft Seal Installer 9506 (2) with seal spring towards the inside of engine.

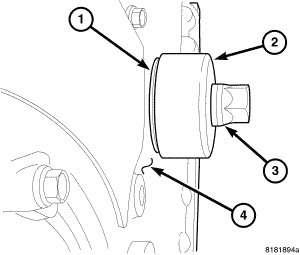

    Fig 2: Installing Front Seal
    GC0054670Courtesy of CHRYSLER LLC
  2. Install new seal (1) by using Front Crankshaft Seal Installer 9506 (2) and crankshaft damper bolt (3).

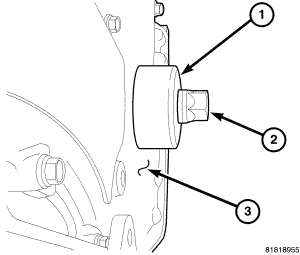

    Fig 3: Front Seal Installed
    GC0054671Courtesy of CHRYSLER LLC
  3. Press seal into front cover until Front Crankshaft Seal Installer 9506 (1) seats against timing chain cover (3).
  4. Remove Front Crankshaft Seal Installer 9506 (1).

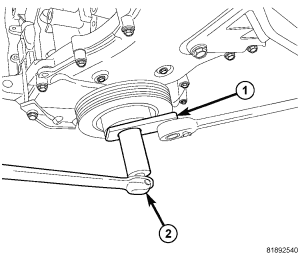

    Fig 4: Removing/Installing Damper
    GC0054672Courtesy of CHRYSLER LLC
  5. Install crankshaft vibration damper.
  6. Oil the bolt threads and between the bolt head and washer.
  7. Install damper retaining bolt and Damper Holder 9707 (1). Tighten bolt to 210 N.m (155 ft. lbs.).
