Piston Ring - Fitting

WARNING: This page is about a different variant/trim than selected.

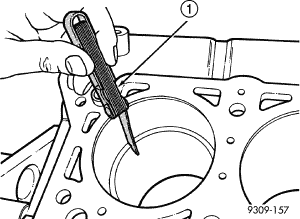

Fig 1: Checking Ring Gap
GC0054689Courtesy of CHRYSLER LLC
  1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 13 mm (0.50 inch) from bottom of cylinder bore and below the bottom of the oil ring travel where cylinder bore has minimal wear. Check gap with feeler gauge. Refer to SPECIFICATIONS  .
    NOTE: Ring end gap measurements are sensitive to the ring being square in the bore. Care must be used to avoid tilting the rings in cylinder bores when taking measurements.

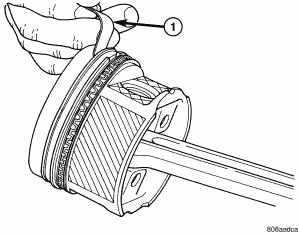

    Fig 2: Checking Ring-To-Groove Side Clearance
    GC0054690Courtesy of CHRYSLER LLC
  2. Check piston ring to groove side clearance. Refer to SPECIFICATIONS  .
CAUTION: Exercise care when using tools on piston. Do not scratch or gouge piston surface or ring grooves as this may cause engine damage.
