Piston Rings

WARNING: This page is about a different variant/trim than selected.

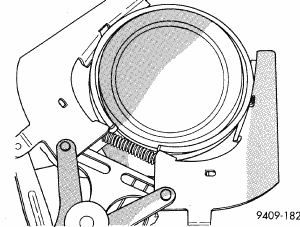

Fig 1: Ring Expander
GC0054691Courtesy of CHRYSLER LLC
  1. Using a suitable ring expander, remove upper and intermediate piston rings.
  2. Remove the upper oil ring side rail, lower oil ring side rail and then oil ring expander from piston.
  3. Clean ring grooves of any carbon deposits.
