Crankshaft Damper

WARNING: This page is about a different variant/trim than selected.

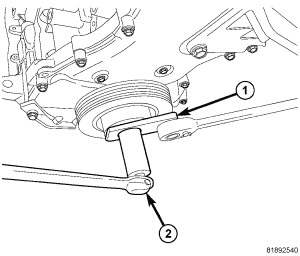

Fig 1: Removing/Installing Damper
GC0054694Courtesy of CHRYSLER LLC
  1. Remove accessory drive belts. Refer to REMOVAL .
  2. Install Damper holder 9707 (1).
  3. Remove crankshaft damper bolt.
  4. Pull damper off crankshaft.
