Crankshaft Damper

WARNING: This page is about a different variant/trim than selected.

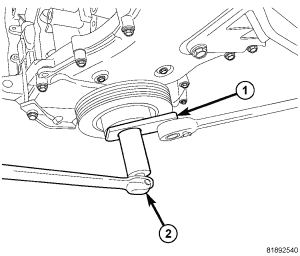

Fig 1: Removing/Installing Damper
GC0054695Courtesy of CHRYSLER LLC
  1. Install crankshaft damper.
  2. Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 N.m (155 ft. lbs.).
  3. Install accessory drive belts. Refer to INSTALLATION .
