Measuring Crankshaft End Play

WARNING: This page is about a different variant/trim than selected.

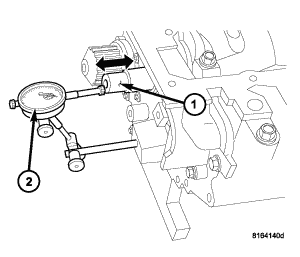

Fig 1: Measuring Crankshaft End Play
GC0054645Courtesy of CHRYSLER LLC
1 - Crankshaft
2 - DIAL INDICATOR
  1. Mount a dial indicator (2) to front of engine with the locating probe on nose of crankshaft (1). See Fig 1.
  2. Move crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move crankshaft all the way to the front and read the dial indicator for end play specification. See SPECIFICATIONS .
