Hydraulic Lash Adjusters

WARNING: This page is about a different variant/trim than selected.

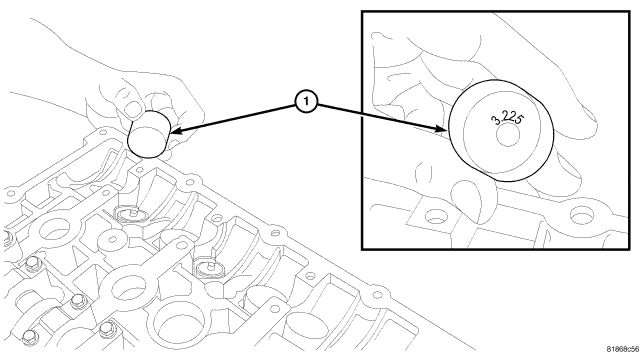

Fig 1: Tappet Identification
GC0054629Courtesy of CHRYSLER LLC
NOTE: If reinstalling original tappets they must go back in their original location or engine damage could result.
  1. Apply a light coat of clean engine oil to camshaft tappets (1) prior to assembly.
  2. Install camshaft tappets (1) into cylinder head.
  3. Repeat installation procedure for each camshaft tappet.
  4. Install camshafts. See INSTALLATION .
    NOTE: If installing new tappets, the valve lash procedure must be performed.

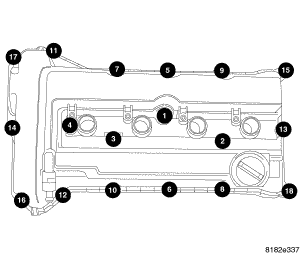

    Fig 2: Torque Sequence
    GC0054630Courtesy of CHRYSLER LLC
  5. Install cylinder head cover. See INSTALLATION .
