Valve Springs And Valve Seals In Vehicle

WARNING: This page is about a different variant/trim than selected.

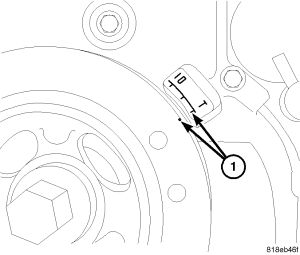

Fig 1: TDC
GC0054631Courtesy of CHRYSLER LLC
  1. Rotate crankshaft until piston is at TDC on compression.

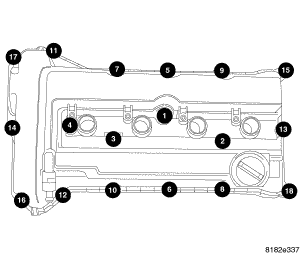

    Fig 2: Torque Sequence
    GC0054632Courtesy of CHRYSLER LLC
  2. Remove cylinder head cover. See REMOVAL .
  3. Remove camshafts. See REMOVAL .
  4. Mark valve tappet location for assembly.
  5. Remove valve tappets.
  6. With air hose attached to adapter tool installed in spark plug hole, apply 90-120 psi air pressure.
    CAUTION: Care must be taken not to damage the tappet bore or engine damage may result.

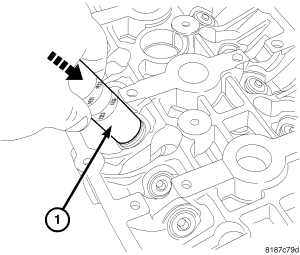

    Fig 3: Valve Removal
    GC0054633Courtesy of CHRYSLER LLC
  7. Using metric valve keeper tool (1) such as Snap-on® GA317 (or equivalent), and remove valve spring keepers and retainer.
  8. Remove valve spring(s).
  9. Remove valve stem seal(s) by a using valve stem seal tool.
