Valve Springs And Valve Seals In Vehicle
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Care must be taken not to damage the tappet bore or engine damage may result.

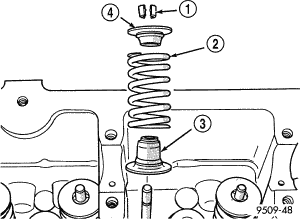

| 1 - VALVE RETAINING LOCKS |
| 2 - VALVE SPRING |
| 3 - VALVE SEAL AND VALVE SPRING SEAT ASSEMBLY |
| 4 - VALVE SPRING RETAINER |
- Install valve seal/valve spring seat (3) assembly. Push the assembly down with appropriate size socket to seat it onto the valve guide.
- Install valve spring (2) and retainer (4) with keepers (1).

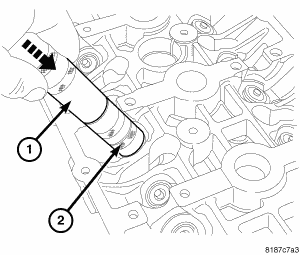

- Place the valve keepers in the retainer. Using metric valve keeper tool such as Snap-on® GA317 (or equivalent) installer (2) and remover (1) as a handle, install valve keepers with a downward push.
- Remove air hose and install spark plugs.
- Install valve tappets.
- Install camshafts. See INSTALLATION .
- Install cylinder head cover. See INSTALLATION .
