Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

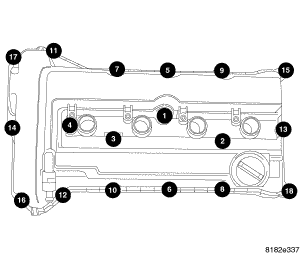

Fig 1: Torque Sequence
GC0054619Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Disconnect ignition coil electrical connectors.
  3. Disconnect PCV and make-up air hoses from cylinder head cover.
  4. Use compressed air to blow dirt and debris off the cylinder head cover prior to removal.
  5. Remove cylinder head cover bolts.
  6. Remove cylinder head cover from cylinder head.
