Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

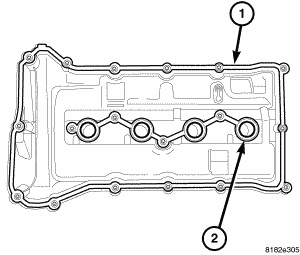

Fig 1: Gasket Location
GC0054620Courtesy of CHRYSLER LLC
  1. Install new cylinder head cover gaskets (1,2).

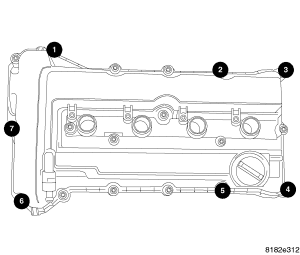

    Fig 2: Stud Location
    GC0054621Courtesy of CHRYSLER LLC
  2. Install studs in cover as shown in illustration.

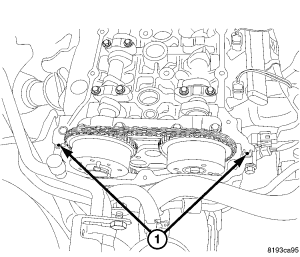

    Fig 3: Cylinder Head/Front Cover T-Joints
    GC0054622Courtesy of CHRYSLER LLC
  3. Clean all RTV from cylinder head.
    NOTE: When using RTV, the sealing surfaces must be clean and free from grease and oil.
    NOTE: When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.
  4. Apply a dot of Mopar® engine sealant RTV or equivalent to cylinder head/front cover T-joints (1).

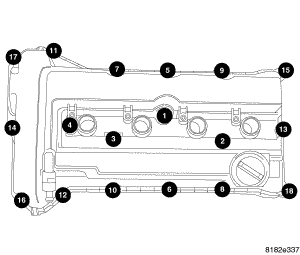

    Fig 4: Torque Sequence
    GC0054623Courtesy of CHRYSLER LLC
  5. Install cylinder head cover assembly to cylinder head and install all bolts, ensuring the studs are located as shown in illustration.
  6. Tighten bolts in sequence shown in illustration using a 2 step torque method as follows:
    • Tighten all bolts to 5 N.m (44 in. lbs.)
    • Tighten all bolts to 10 N.m (90 in. lbs.).
  7. Install ignition coils. Tighten fasteners to 8 N.m (70 in. lbs.).
  8. If the PCV valve was removed, tighten PCV valve to 5 N.m (44 in. lbs.).
  9. Connect PCV and make-up air hoses to cylinder head cover.
  10. Install engine cover.
