Camshaft Phasers

WARNING: This page is about a different variant/trim than selected.
NOTE: Camshaft phaser and camshaft sprocket are supplied as an assembly, do not attempt to disassemble.

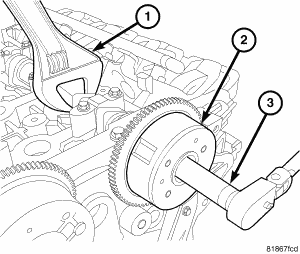

Fig 1: CAMSHAFT PHASER
GC0054640Courtesy of CHRYSLER LLC
  1. Remove camshafts. See REMOVAL .
  2. Remove camshaft phaser (2) retaining bolt while holding the camshaft in place with a wrench (1) on the camshaft flats.
  3. Remove phaser (2) assembly from camshaft.
