Air Cleaner Housing

WARNING: This page is about a different variant/trim than selected.

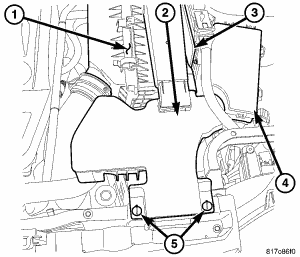

Fig 1: Air Cleaner Housing Assembly
GC0054555Courtesy of CHRYSLER LLC
  1. Remove fresh air inlet (2) from air cleaner housing (1).

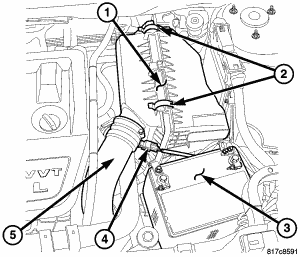

    Fig 2: Air Cleaner Housing
    GC0054556Courtesy of CHRYSLER LLC
  2. Remove intake air temperature sensor electrical connector (4).
  3. Remove air inlet tube (5) from housing (1).
  4. Pull housing (1) upward to remove.
