Air Cleaner Housing

WARNING: This page is about a different variant/trim than selected.

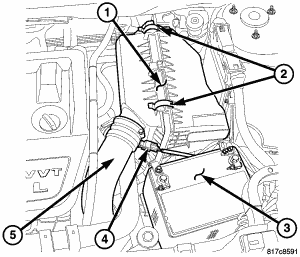

Fig 1: Air Cleaner Housing
GC0054557Courtesy of CHRYSLER LLC
  1. Make sure the rubber grommets, for the air cleaner housing lower pins, are in place when reinstalling the air cleaner housing. The rubber grommets mount to the PDC bracket.
  2. Push air cleaner housing (1) down while aligning pins into the grommets.
  3. Connect the throttle body air inlet hose (5) to the air cleaner housing (1).
  4. Connect intake air temperature sensor connector (4).

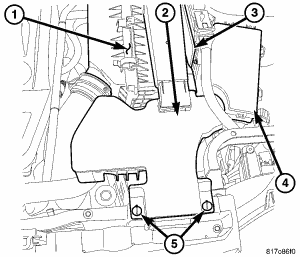

    Fig 2: Air Cleaner Housing Assembly
    GC0054558Courtesy of CHRYSLER LLC
  5. Install fresh air inlet (2) and lock retainers (5).
