Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.
Fig 1: Air Cleaner Housing Assembly
GC0054549Courtesy of CHRYSLER LLC
  1. Turn lock retainers (5) and remove fresh air inlet (2) from air cleaner housing (1).

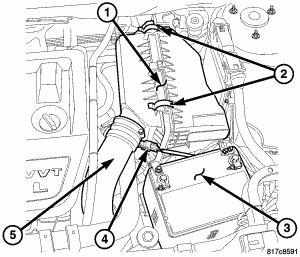

    Fig 2: Air Cleaner Housing
    GC0054550Courtesy of CHRYSLER LLC
  2. Disconnect intake air temperature sensor connector (4).
  3. Remove air inlet tube (5) from air cleaner housing (1).
  4. Unfasten clasps (2) on sides of air cleaner housing cover.

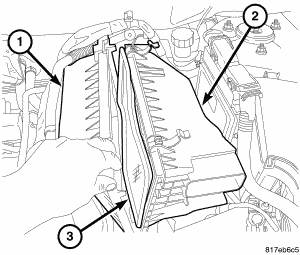

    Fig 3: Air Filter Element
    GC0054551Courtesy of CHRYSLER LLC
  5. Pull air cleaner cover (1) aside.
  6. Remove filter element (3).
  7. If necessary, clean the inside of the air cleaner housing (2).
