Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.

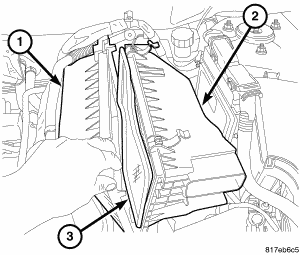

Fig 1: Air Filter Element
GC0054552Courtesy of CHRYSLER LLC
  1. Install new filter element.

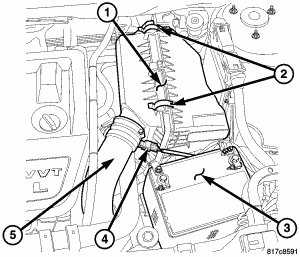

    Fig 2: Air Cleaner Housing
    GC0054553Courtesy of CHRYSLER LLC
  2. Place cover over air cleaner housing. Snap clasps (2) in place.
  3. Install air inlet tube (5).
  4. Connect intake air temperature sensor connector (4).

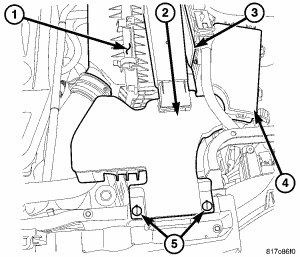

    Fig 3: Air Cleaner Housing Assembly
    GC0054554Courtesy of CHRYSLER LLC
  5. Install fresh air inlet (2) on air cleaner housing (1) and lock retainers (5).
