Engine Cover

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

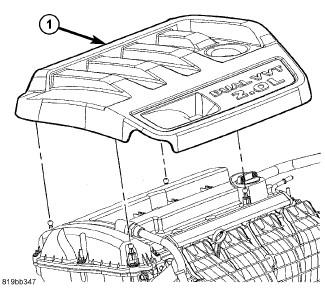

Fig 1: Engine Cover - 2.0L
GC0098569Courtesy of CHRYSLER LLC
  1. Remove engine cover (1) by pulling upwards.
