SENSOR, Oil Temperature: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

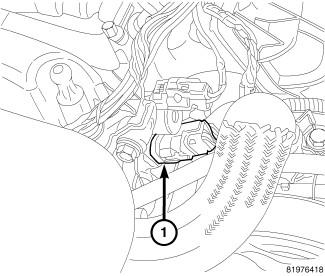

Fig 1: Oil Temperature Sensor
GC0098662Courtesy of CHRYSLER LLC
  1. Disconnect oil temperature sensor (1) electrical connector.
  2. Remove sensor (1).
