Front Solenoid 1/1

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

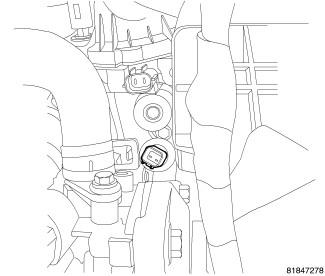

Fig 1: Oil Pressure Sensor
GC0084869Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Rotate hose clamp out of way.
  4. Disconnect oil pressure sensor electrical connector.
  5. Remove oil pressure sensor.
  6. Disconnect variable valve timing solenoid electrical connector.

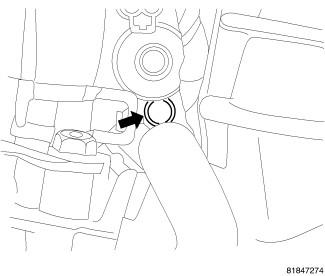

    Fig 2: Solenoid Mounting Bolt
    GC0084870Courtesy of CHRYSLER LLC
  7. Remove variable valve timing solenoid mounting bolt.

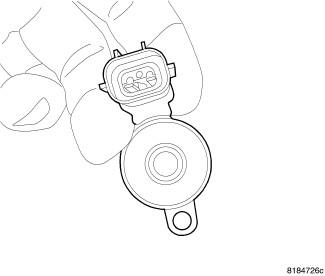

    Fig 3: Solenoid Mounting Tab 1/1
    GC0084871Courtesy of CHRYSLER LLC
  8. Pull solenoid straight out of cylinder head.
