Front Solenoid 1/1

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

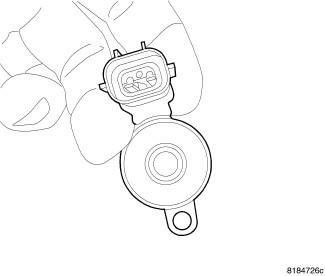

Fig 1: Solenoid Mounting Tab 1/1
GC0084874Courtesy of CHRYSLER LLC
  1. Solenoid for front location 1/1. Note mounting tab location is different between front and rear solenoids.

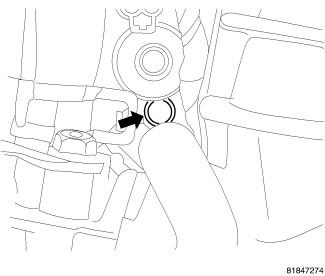

    Fig 2: Solenoid Mounting Bolt
    GC0084875Courtesy of CHRYSLER LLC
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).

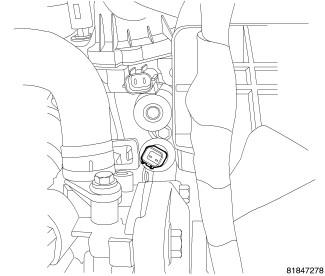

    Fig 3: Oil Pressure Sensor
    GC0084876Courtesy of CHRYSLER LLC
  4. Install oil pressure sensor.
  5. Connect electrical connector to oil pressure sensor.
  6. Connect electrical connector to Variable valve timing solenoid.
  7. Connect negative battery cable.
  8. Install engine cover.
