INSULATOR, Engine Mount, Front: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

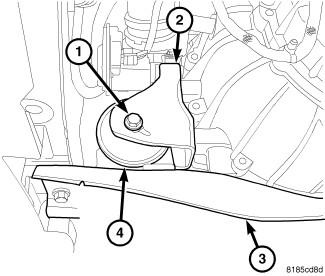

Fig 1: Front Mount Through Bolt
GC0084853Courtesy of CHRYSLER LLC
  1. Position mount (4) and tighten bolts to 47 N.m (35 ft. lbs.).
  2. Install fore aft member (3) and tighten bolts to 100 N.m (74 ft. lbs.).
  3. Install mount through bolt (1) and tighten to 47 N.m (35 ft. lbs.).
  4. Lower vehicle.
