Measuring Crankshaft End Play

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

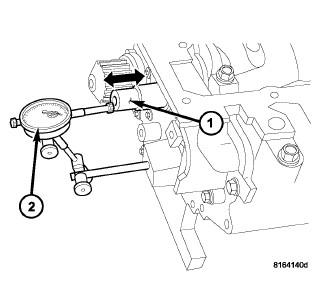

Fig 1: Checking Crankshaft End Play - Dial Indicator
GC0084818Courtesy of CHRYSLER LLC
1 - Crankshaft
2 - DIAL INDICATOR
  1. Mount a dial indicator (2) to front of engine with the locating probe on nose of crankshaft (1).
  2. Move crankshaft all the way to the rear of its travel.
  3. Zero the dial indicator.
  4. Move crankshaft all the way to the front and read the dial indicator. See Engine - Specifications  for end play specification.
