Cylinder Head On

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Care must be taken not to damage the tappet bore or engine damage may result.

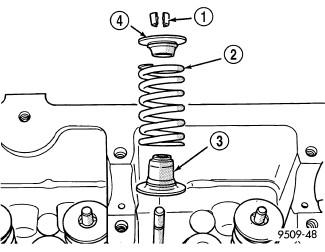

Fig 1: Valve Spring Assembly

Courtesy of CHRYSLER LLC

1 - VALVE RETAINING LOCKS

2 - VALVE SPRING

3 - VALVE SEAL AND VALVE SPRING SEAT ASSEMBLY

4 - VALVE SPRING RETAINER

Install valve seal/valve spring seat (3) assembly. Push the assembly down with appropriate size socket to seat it onto the valve guide.
Install valve spring (2) and retainer (4) with keepers (1).

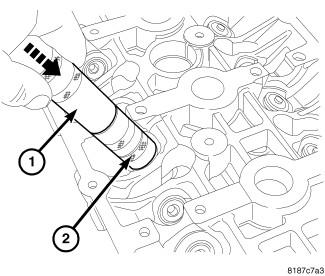

Fig 2: Valve Installation
Courtesy of CHRYSLER LLC
Place the valve keepers in the retainer. Using metric valve keeper tool such as Snap-on® GA317 (or equivalent) installer (2) and remover (1) as a handle, install valve keepers with a downward push.
Remove air hose and install spark plugs.
Install valve tappets.
Install camshafts. See Engine/Cylinder Head/CAMSHAFT, Engine - Installation .
Install cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .
