Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

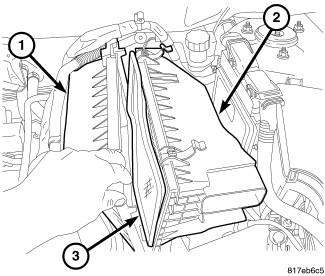

Fig 1: Air Filter

Courtesy of CHRYSLER LLC

Install new filter element.

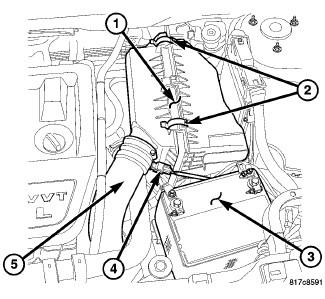

Fig 2: Air Cleaner Housing
Courtesy of CHRYSLER LLC
Place cover over air cleaner housing. Snap clasps (2) in place.
Install air inlet tube (5).
Connect intake air temperature sensor connector (4).

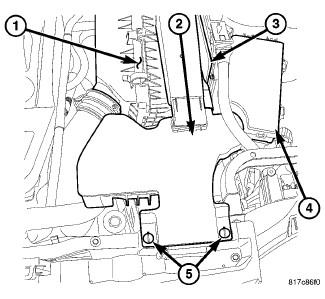

Fig 3: Air Cleaner Inlet
Courtesy of CHRYSLER LLC
Install fresh air inlet (2) on air cleaner housing (1) and lock retainers (5).
