Section 69 (DTCS P128C To U1105 (TIPM))
>>
U0019-Can B Bus
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

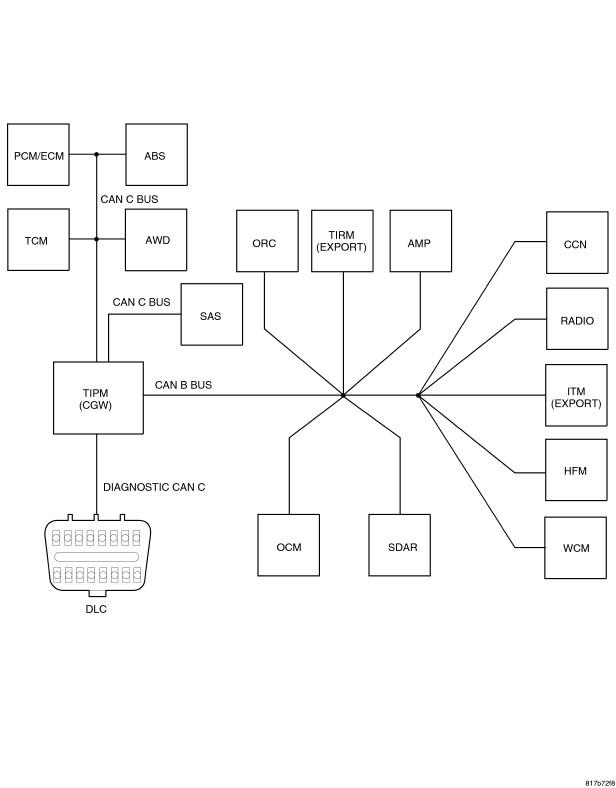

Fig 1: CAN B Bus Circuit Schematic
Courtesy of CHRYSLER LLC
