P0572-Brake Switch 1 Stuck On: Notes

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

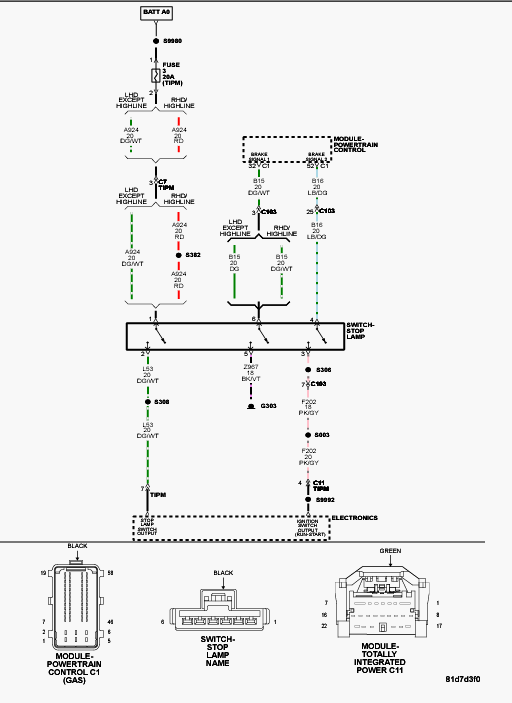

Fig 1: Brake Switch Circuit
GC0099961Courtesy of CHRYSLER LLC
