Camber Adjustment Bolt Package Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

The camber adjustment bolt package contains new bolts and nuts for attaching the strut clevis bracket to the steering knuckle. The bolts contained in the package are slightly undersize allowing for movement between the strut clevis bracket and the steering knuckle. The movement allowed by the undersize bolts provide approximately two degrees of camber adjustment per side of the vehicle. To install and adjust the camber adjustment bolt package, follow the procedure below.

  1. Raise the vehicle until its tires are not supporting the weight of the vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure
    Fig 1: Tire And Wheel Mounting Nuts
    GC0084722Courtesy of CHRYSLER LLC
  2. Remove the wheel mounting nuts (3), then the front tire and wheel assembly (1).
    CAUTION: The strut clevis-to-knuckle attaching bolt shanks are serrated and must not be turned during removal. Remove the nuts while holding the bolts stationary, then tap the bolts out using a punch.
    Fig 2: Strut Clevis Bracket
    GC0082329Courtesy of CHRYSLER LLC

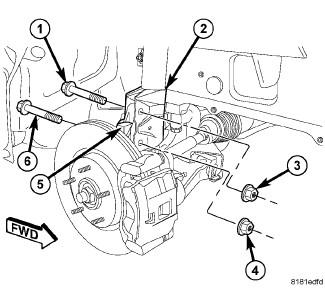

  3. Remove the original upper bolt (1) and nut (3) attaching the strut clevis bracket (2) to the knuckle (5).
  4. Install a bolt from the adjustment package into the hole where the original bolt was removed. Install the bolt as indicated.
  5. Install a nut provided in adjustment package on the replacement bolt. Tighten the nut until it's snug, but still allows the knuckle to slide in the clevis bracket.
    Fig 3: Strut Clevis Bracket
    GC0082329Courtesy of CHRYSLER LLC
  6. Remove the original lower bolt (6) and nut (4) attaching the strut clevis bracket (2) to the knuckle (5).
  7. Install a bolt from the adjustment package into the bottom hole of the strut clevis bracket. Install the bolt as indicated.
  8. Install a nut provided in adjustment package on the replacement bolt. Tighten the nut until it's snug, but still allows the knuckle to slide in the clevis bracket.
    Fig 4: Tire And Wheel Mounting Nuts
    GC0084722Courtesy of CHRYSLER LLC
  9. Install the tire and wheel assembly (1). Refer to Tires and Wheels - Installation . Install and tighten the wheel mounting nuts (3) to 135 N.m (100 ft. lbs.).
  10. Perform the above procedure to opposite strut as required.
  11. Lower the vehicle and jounce the front and rear of the vehicle.
    Fig 5: Strut Clevis Bracket
    GC0082329Courtesy of CHRYSLER LLC
  12. Adjust the front camber to the preferred setting by pushing or pulling on the top of the tire. When camber is set to specifications, tighten the upper and lower strut clevis-to-knuckle attaching bolt nuts (3, 4) enough to hold the adjustment. Again jounce the front and rear of the vehicle, then verify the camber settings.
  13. Tighten the front strut clevis-to-knuckle attaching bolt nuts (3, 4) to 110 N.m (81 ft. lbs.).
  14. Once camber is within specifications, adjust toe to meet the preferred specification setting. Refer to FRONT TOE within this wheel alignment service procedure.
